LAUNCH 36

Let the Entertaining Begin.

A teak console houses a complete kitchen that performs double duty. Equipped with an ice maker <em>and </em>refrigerator, as well as an outdoor ceramic cooktop <em>and</em> a grill, it’s always ready to serve, whether it’s a day trip or a week-long stay.

RESUMEN DE ESPECIFICACIONES

Length

38'2"

11.63 m

Beam

12'6"

3.81m

Dry Weight

16,000 lbs

7,257 kg

Capacity

15 persons

Specifications
+

Length overall (w/ swim platform)

38'2"

11.63 m

Length overall (w/o swim platform)

36'3"

11.05 m

Centerline length

36'3"

11.05 m

Waterline length

29'9"

9.06 m

Hull length

36'3"

11.05 m

Beam maximum

12'6"

3.81 m

Beam transom

10'10"

3.3 m

Beam waterline

10'10"

3.3 m

Dry weight

16,000 lbs

7,257 kg

Fuel capacity

274 gal

1,037 ltr

Water capacity

50 gal

189 ltr

Holding Tank

27 gal

102 ltr

Deadrise

20 deg

Transom angle

14 deg

Center of Gravity

9'10

2.98 m

Draft, prop raised

20"

50 cm

Draft, prop lowered

31"

78 cm

Freeboard forward

38"

96 cm

Freeboard at half length

42"

1.05 cm

Freeboard aft

35"

89 cm

Height overall

9'10"

2.89 m

Bridge clearance

7'10"

2.4 m

Maximum persons

15

Standard Features
+

Teak Maintenance Kit

Teak Caulk Color Choice – black or blonde

3 Yr - Chris Craft protection plan

5 Yr - transferable hull/structural warranty

Bow Scuff Plate - SS

Certifications and Standards - NMMA, ABYC, USCG

Deck Fill Plates - SS

Deck - diamond pattern non-skid, fiberglass

Flag/Pennant - embroidered Chris Craft and US Flag kit w/SS magnetic pole and base

Color Selections - base gel, Ivory Cream

Color Selections - boot stripe - multiple color selections

Gunnel Trim Rubrail - molded PVC w/SS insert

Hardware - bow and stern eyes, SS

Hardware - bow light cover, SS

Hardware - chrome plated SS fasteners

Hardware - cleats, SS mooring

Hardware - high end fit n finish w/316L SS and Chris Craft logo

Hardware - thru-hull fittings, SS

Hatches - vacuum infused w/ SS shocks

Hull - Chris Craft trademark Tumblehome design

Hull - deep V bottom w/flared bow

Hull - deck joint - mechanically, chemically bonded

Lighting - navigation lights, SS and international compliance

Logo - SS, Chris Craft branded

Swim Ladder - 3 step, SS hidden

Swim Platform – integral

Swim Platform Grabhandle - SS

Beverage Holders - Stainless Steel

Bolsters - padded gunwhale mounted

Drains – SS

Fuel System - EPA compliant

Grabrails - SS

Helm - compass, dash mounted

Helm - dash, gauge and switch panels w/silver perforated panels

Helm - dash light dimmer

Helm - ignition safety switch(es)

Helm - model designator, SS

Helm - steering wheel, mahogany

Helm - steering, tilt w/power assist

Helm - stereo remote, MP3/USB inputs w/Fusion Bluetooth enabled

Ladder - Stainless Steel boarding

Lighting - LED courtesy

Outlets/Input - 12v accessory outlet(s)

Outlets/Input - USB auxiliary input

Speakers - JL Audio Sound System

Stereo System - Fusion, AM/FM/Bluetooth/USB

Stereo System - Premium upgrade with amp and subwoofer

Stowage - aft deck compartments

Upholstery Construction - high density foam with antimicrobials and open cell mesh for drying

Vinyl - heavy duty, stain/UV resistant

Vinyl - multiple design/color selections

Windscreen - curved tempered glass

Windscreen - Stainless Steel Frame

Battery Charger

Battery Switch w/breakers

Battery Tray(s)

Bilge Pump - w/autofloat System

Electric Wiring - color coded and numbered w/Duetch connectors

Electrical Bonding System

Engine Packages
+
Mercury

Twin Mercury V8 8.2L (380x2 HP) B3 FWC DTS

Twin Mercury V8 8.2L (430x2 HP) B3 FWC DTS

Twin Mercury Verado (350 PSHP x2) 4 Stroke - DTS

Triple Mercury Verado (300 PSHP x3) 4 Stroke - DTS

Volvo

Twin Volvo V8 6.0L (380x2 HP) DP EVC FWC

Twin Volvo V8 6.0L (430x2 HP) DP EVC FWC

Twin Volvo D6 Diesel (370x2 HP) DP EVC FWC

Twin Volvo D6 Diesel (400x2 HP) DP EVC FWC

Yamaha

Twin Yamaha (350 PSHP x2) 4 Stroke - Command Link Plus

Triple Yamaha (300 PSHP x3) 4 Stroke - Command Link Plus

Engine Options

Mercury - Seacore

Mercury - Axius Joystick

High Altitude

Volvo - Ocean X

Volvo - Joystick

Volvo- Glass Cockpit

Mercury Joystick Piloting

Painted Engines

Optimus 360 Joystick

Yamaha Helm Master Joystick

Standard Equipment
+

Twin Mercury V8 8.2L (380x2 HP) B3 FWC DTS

Teak - bow accents w/SS inserts and Chris Craft SS Logo inlay

Teak - grab rails

Teak - helm footpad / footrests

Air Intakes - SS

Anchor - bow locker - w/teak and Chris Craft logo inlay

Ports - shore power inlet(s) w/ galvanic isolator

Self Bailing Cockpit

Swim Platform - integral w/ 3-step ladder

Trim Tabs - Lenco

Ventilation Grates/Stainless Steel

Canvas - bimini top w/SS bows and color fast acrylic

Canvas - console cover

Canvas - helm seat cover

CO Detector

Door - cabin, sliding w/screen

Galley - grill

Galley - ice maker

Galley - microwave

Galley - refrigerator

Galley - stove, 2 burner, flush mounted, glass top electric

Galley Convenience Pkg - cook top, grill, ice maker, refrigerator, microwave, sink and storage (*requires offshore generator)

Handrails - cabin entry, SS

Helm - binnacle mount controls

Helm - depth finder - LCD

Helm - digital gauge package, Chris Craft branded

Helm - engine controls, Electronic Control - EVC/DTS/DEC

Helm - horn, electric

Helm - horn, electric trumpet(s)

Helm - trim tab controls

Outlets/Input - 120v outlet GFCI

Seating - aft U-shaped

Seating - forward sunbathing area

Seating - forward sunlounger, full size w/concealed filler cushion

Shower - transom (*w/hot-cold)

Sink - SS with faucet

Stereo / DVD Combo

Stowage - aft cockpit, underseat

Stowage - bow, port and starboard recessed

Stowage - coaming w/beverage holders

Stowage - fender, hidden

Stowage - helm underseat

Stowage - port and starboard underseat

Table - teak, aft

Transom Entrance - gate - SS custom latch

Transom Entrance - Access from the swim platform

TV- flatscreen

Berth - forward, w/coordinated cabin fabrics

Cabinetry - wood veneer, hand crafted

CO Detector(s)

Cushions - custom fitted upholstered

Doors - hand crafted w/insert Chris Craft logo

Electric Outlet – GFIC

Flooring - wood floor w/multiple type selections

Galley - Skylight

Interior Wood Package (*Walnut & Whitewashed Oak = Std / Zebra Wood = Opt)

Lighting - cabin steps

Lighting - indirect

Lighting - LED ovehead

Lighting - reading and nightlights

Lighting - skylight w/screen

Lighting - Vimar switches w/chrome frame

Mirror – custom

Stereo - remote

Stowage - cedar lined, wardrobe

Stowage - drawers, some slideout

Stowage – underberth

Stowage - wardrobe closets (2)

TV / DVD - hi-fi w/remote (Cabin or Cockpit)

Berth - double aft, w/coordinated cabin fabrics

Berth - single w/coordinated cabin fabrics

Finishing Accents - wood and leather

Flooring - wooden

Lighting - LED overhead

Lighting - reading

Portholes - SS w/venetian/blackouts

Table - bedside

Blower - w/SS hullside vent

Countertop - custom, solid surface

Dockside Pumpout

Door - lockable entry

Electric Outlet - GFIC

Lighting - LED overhead

Lighting - skylight

Mirror

Sink - basin w/hot and cold water

Toilet - Tecma porcelain w/macerator and dockside pumpout

Toilet Brush

Toilet Paper Holder - waterproof

Toothbrush Holder

Towel Holder

Door - wood, main cabin

Lighting - skylight, opening

Shower - separate, freshwater w/storage and seat

AC / Heater - 16,000 btu

Anode, Zinc

Batteries 24v - (1) generator

Batteries 24v - (2) engine starting

Bilge Pump - highwater w/autofloat Switch

Bilge System - electric w/blowers

Bilge Wash-Down Spigot – freshwater

Electric Wiring - tinned copper

Electrical Distribution Panel - 120(240) VAC/12 VDC

Electronics Panel - aluminum, powder coated

Engine Compartment Steps - aluminum, diamond non-skid

Engine Hatch - w/SS hinges, electric rams

Engine Hatch - w/SS hinges and SS gas shocks

Engine Hatch Insulation - acoustical barrier, Silver Mylar

Fire Extinguish System - automatic w/manual override

Fuel Crossover Valve

Fuel System - aluminum tanks w/anti-siphon valves and electric sending units

Fuel Tank - (2) w/ decanter

Galvanic Isolator

Generator, gas or diesel, 110v or 220v

Generator - 6Kw, 60Hz

Macerator w/ball valve (*must select Tecma head)

Pump - freshwater, pressurized

Pump - sump pump for drains

Water / Holding Tank Level Monitor - electric

Water Heater

Options and Accessories
+

Bow Docking Lights - LED

Bow Rail SS (Removes Teak Covering Boards)

Bow Thruster

CE Certification

Mooring Cover

Gray Water System

Ocean Shipping Cradle

Sirius Satellite Radio (no subscription) (US and Canada Only)

Teak - Galley Cabinet Doors

Underwater Lights (2)

Waste Macerator with Ball Valve

Water Ready Option

Windlass with SS Anchor and Approx. 220' Line

Windlass with SS Anchor and Approx. 220' Chain

Hard Top with Glass Sunroof and Electric Aft Sun-Shade

Garmin 7612xsv Electronics Package

Garmin 7612xsv Electronics Package (Dual Screen)

Hard Top with Pull Out Sun Shade

Sport Top with Pull Out Sun Shade

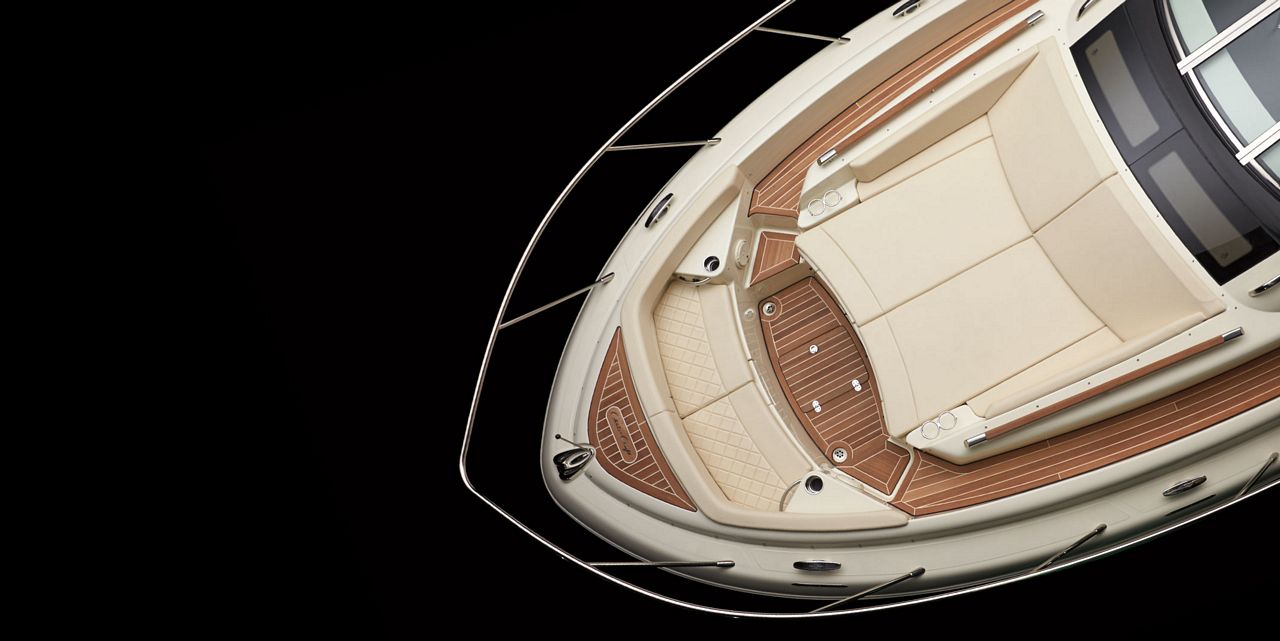

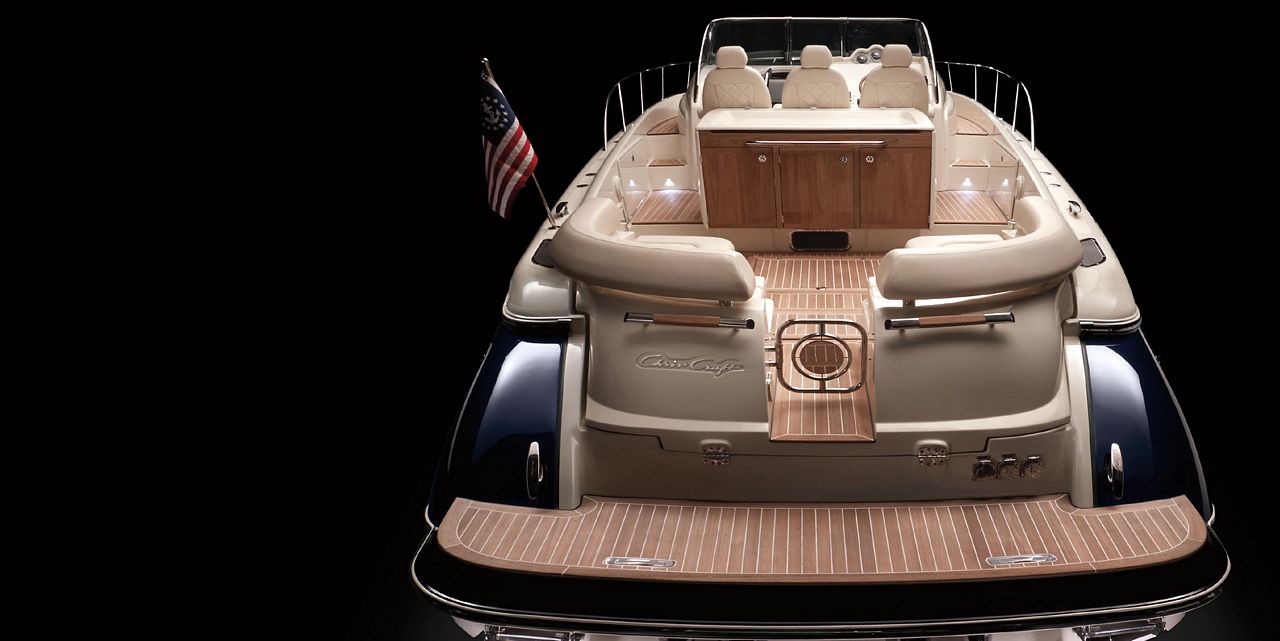

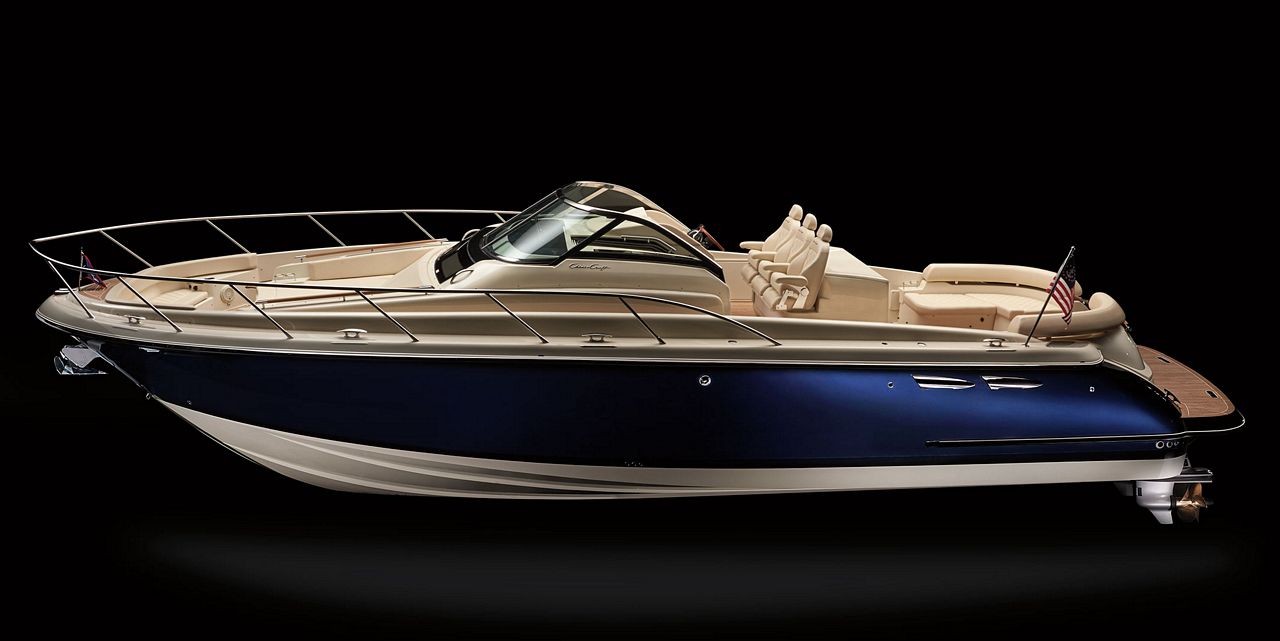

GALERIA / LAUNCH 36

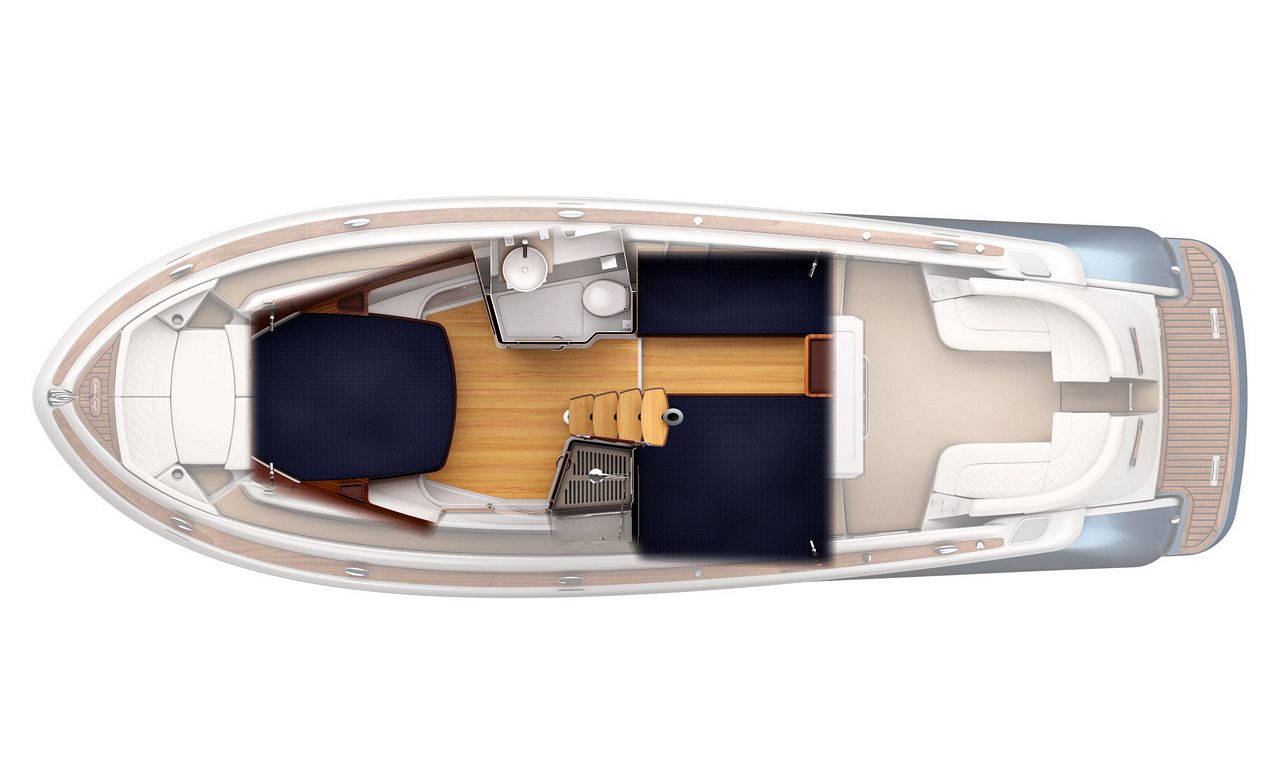

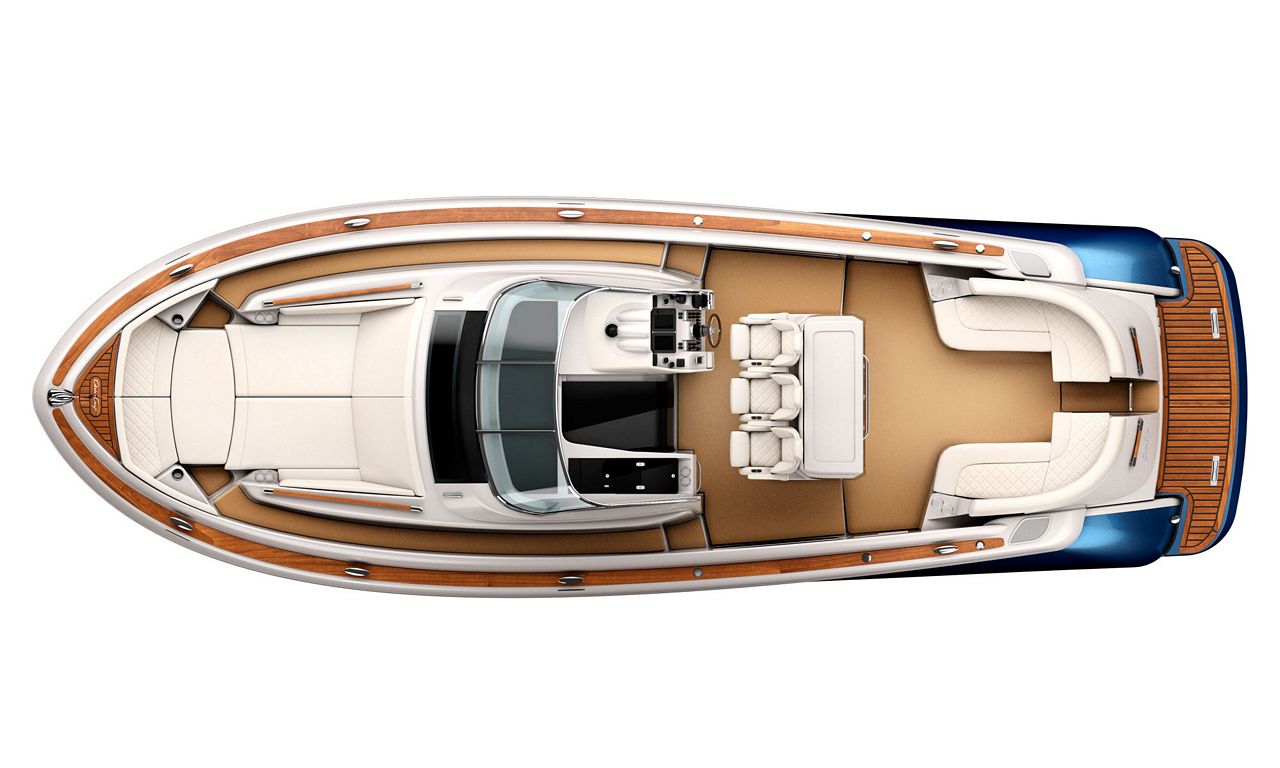

VISTA DE PLANO / LAUNCH 36
