CORSAIR 32

Your Home Away from Home.

The spectacular private cabin is bright and open, thanks to three expansive overhead sunlights. Impeccably finished in hand-selected woods and custom upholstery, it includes a galley, sleeping area and separate bathroom. So inviting, it’s hard to leave.

RESUMEN DE ESPECIFICACIONES

Length

34'3"

10.4 m

Beam

10'2"

3.1 m

Dry Weight

9,950 lbs

4,513 kg

Capacity

12 persons

Specifications
+

Length overall (w/ swim platform)

34'3"

10.4

Length overall (w/o swim platform)

32'

9.75 m

Waterline length

29'9"

8 m

Beam maximum

10'2"

3.1 m

Beam transom

8'9"

2.7 m

Center of gravity (fwd of transom keel)

12'7"

3.8 m

Dry weight

9,950 lbs

4,513 kg

Fuel capacity

185 gal

700.3 ltr

Water capacity

9 gal

34 ltr

Deadrise

22 deg

Transom angle

13 deg

Freeboard forward

38"

96.5 cm

Freeboard at half length

35"

88.9 cm

Freeboard aft

27"

68 cm

Height overall

6'10"

2.1 m

Bridge clearance

60"

1.5 m

Maximum persons

12

Standard Features
+

Teak Maintenance Kit

Teak Caulk Color Choice – black or blonde

3 Yr - Chris Craft protection plan

5 Yr - transferable hull/structural warranty

Bow Scuff Plate - SS

Certifications and Standards - NMMA, ABYC, USCG

Deck Fill Plates - SS

Deck - diamond pattern non-skid, fiberglass

Flag/Pennant - embroidered Chris Craft and US Flag kit w/SS magnetic pole and base

Color Selections - base gel, Ivory Cream

Color Selections - boot stripe - multiple color selections

Gunnel Trim Rubrail - molded PVC w/SS insert

Hardware - bow and stern eyes, SS

Hardware - bow light cover, SS

Hardware - chrome plated SS fasteners

Hardware - cleats, SS mooring

Hardware - high end fit n finish w/316L SS and Chris Craft logo

Hardware - thru-hull fittings, SS

Hatches - vacuum infused w/ SS shocks

Hull - Chris Craft trademark Tumblehome design

Hull - deep V bottom w/flared bow

Hull - deck joint - mechanically, chemically bonded

Lighting - navigation lights, SS and international compliance

Logo - SS, Chris Craft branded

Swim Ladder - 3 step, SS hidden

Swim Platform – integral

Swim Platform Grabhandle - SS

Beverage Holders - Stainless Steel

Bolsters - padded gunwhale mounted

Drains – SS

Fuel System - EPA compliant

Grabrails - SS

Helm - compass, dash mounted

Helm - dash, gauge and switch panels w/silver perforated panels

Helm - dash light dimmer

Helm - ignition safety switch(es)

Helm - model designator, SS

Helm - steering wheel, mahogany

Helm - steering, tilt w/power assist

Helm - stereo remote, MP3/USB inputs w/Fusion Bluetooth enabled

Ladder - Stainless Steel boarding

Lighting - LED courtesy

Outlets/Input - 12v accessory outlet(s)

Outlets/Input - USB auxiliary input

Speakers - JL Audio Sound System

Stereo System - Fusion, AM/FM/Bluetooth/USB

Stereo System - Premium upgrade with amp and subwoofer

Stowage - aft deck compartments

Upholstery Construction - high density foam with antimicrobials and open cell mesh for drying

Vinyl - heavy duty, stain/UV resistant

Vinyl - multiple design/color selections

Windscreen - curved tempered glass

Windscreen - Stainless Steel Frame

Battery Charger

Battery Switch w/breakers

Battery Tray(s)

Bilge Pump - w/autofloat System

Electric Wiring - color coded and numbered w/Duetch connectors

Electrical Bonding System

Engine Packages
+
Mercury

Twin Mercury V8 6.2L (300x2 HP) B3 DTS

Twin Mercury V8 6.2L (350x2 HP) B3 DTS

Twin Mercury V8 8.2L (380x2 HP) B3 FWC DTS

Twin Mercury V8 8.2L (430x2 HP) B3 FWC DTS

Volvo

Twin Volvo V8 5.3L (300x2 HP) DP EVC FWC

Twin Volvo V8 5.3L (350x2 HP) DP EVC FWC

Twin Volvo V8 6.0L (380x2 HP) DP EVC FWC

Twin Volvo V8 6.0L (430x2 HP) DP EVC FWC

Twin Volvo D4 Diesel (300x2 HP) DP EVC FWC

Engine Options

Mercury - Seacore

Mercury - Axius Joystick

Selectable Exhaust

High Altitude

Volvo - Ocean X

Volvo - Joystick

Standard Equipment
+

Twin Mercury V8 6.2L (300x2 HP) B3 DTS

Standard Edition

Teak - cockpit steps

Teak - beverage holder accents

Teak - engine walk-over

Teak - forward deck (*w/rails)

Teak - grab rails

Teak - helm footpad / footrests

Air Intakes - SS

Anchor - bow locker - w/acrylic lid and SS gas shock

Hull - stringer system and liner, 1 piece fiberglass foam filled for floatation and noise reduction

Ski Pylon - removable

Trim Tabs - Lenco

Ventilation Grates/Stainless Steel

Canvas - bimini top w/SS bows and color fast acrylic

CO Detector

Door - cabin , gelcoated bottom w/teak top

Galley - refrigerator

Helm - binnacle mount controls

Helm - depth finder - LCD

Helm - digital gauge package, Chris Craft branded

Helm - engine controls, Electronic Control - EVC/DTS/DEC

Helm - horn, electric trumpet(s)

Seating - aft cockpit, port and starboard rear facing sun loungers

Seating - aft U-shaped

Seating - helm, double driver's side w/flip-up bolster (*electric optional)

Seating - portside passenger, chair w/flip-up bolster, swivel and SS integrated grab handles

Seating - sunpad, large aft w/ transom walk-over (*includes filler pad)

Shower - transom (*w/hot-cold)

Stereo / DVD Combo

Stowage - bimini, dedicated under engine hatch

Stowage - bow, port and starboard recessed

Stowage - coaming w/beverage holders

Stowage - fender, hidden

Stowage - port and starboard underseat

TV- flatscreen

Windscreen - tempered glass, center walk-thru

Berth - forward, w/coordinated cabin fabrics

Cabinetry - wood veneer, hand crafted

CO Detector(s)

Cushions - custom fitted upholstered

Doors - hand crafted w/insert Chris Craft logo

Electric Outlet – GFIC

Flooring - wood floor w/multiple type selections

Galley - Countertop, solid surface

Galley - Refrigerator

Galley – Sink

Interior Wood Package (*Walnut & Whitewashed Oak = Std / Zebra Wood = Opt)

Lighting - cabin steps

Lighting - galley, overhead

Lighting - LED ovehead

Lighting - reading and nightlights

Lighting - skylight w/screen

Lighting - Vimar switches w/chrome frame

Mirror – custom

Stereo - remote

Stowage - underberth

Table - wood dining

TV / DVD - hi-fi w/remote (Cabin or Cockpit)

Blower - w/SS hullside vent

Countertop - custom, solid surface

Lighting - LED overhead

Mirror

Sink - basin w/hot and cold water

Stowage - lower cabinet

Stowage - upper cabinet

Toilet - Tecma porcelain w/macerator and dockside pumpout

Toilet Brush

Toilet Paper Holder - waterproof

Toothbrush Holder

Towel Holder

Bilge Pump - highwater w/autofloat Switch

Bilge System - electric w/blowers

Electric Wiring - tinned copper

Engine Hatch - emergency lift w/jumper posts

Engine Hatch - w/SS hinges, electric rams

Engine Hatch Insulation - acoustical barrier, Silver Mylar

Fire Extinguish System - automatic w/manual override

Fuel System - aluminum tanks w/anti-siphon valves and electric sending units

Galvanic Isolator

Pump - freshwater, pressurized

Pump - sump pump for drains

Water / Holding Tank Level Monitor - electric

Water Heater

Options and Accessories
+

Air Conditioner

Bow Docking Lights - LED

Bow Thruster

Carpet - Woven Seagrass

CE Certification

Cockpit Cover (Color Same as Canvas Top)

Mooring Cover

Electric Drivers Helm Seat

Galley Hardwood Floor (Matched to Interior Wood)

Galley Convenience Package (Stove & Microwave)

Generator - Gas

Generator - Diesel

Ocean Shipping Cradle

Garmin 741XS GPS - 7" Multifunction Display

Sirius Satellite Radio (no subscription) (US and Canada Only)

Teak Engine Hatch

Teak Engine Hatch with Sunpad

Underwater Lights (2)

Waste Macerator with Ball Valve

Water Ready Option - Optima AGM Blue Top Batteries

Windlass with SS Anchor and Approx. 100' Line

Windlass with SS Anchor and Approx. 100' Chain

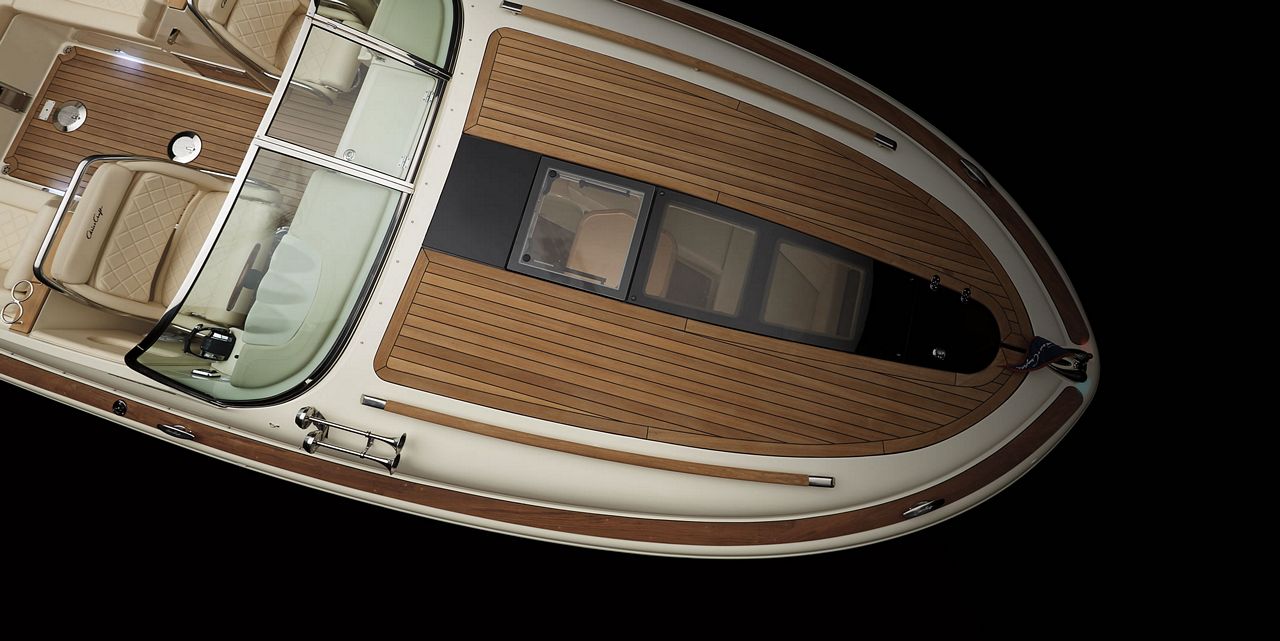

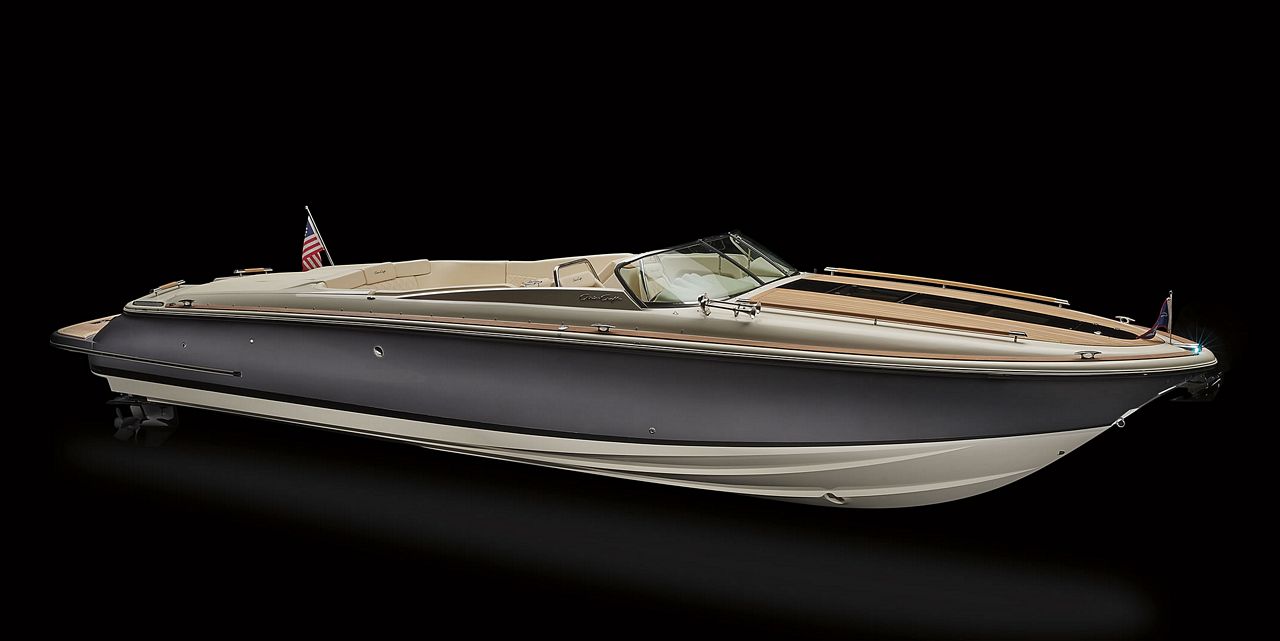

GALERIA / CORSAIR 32

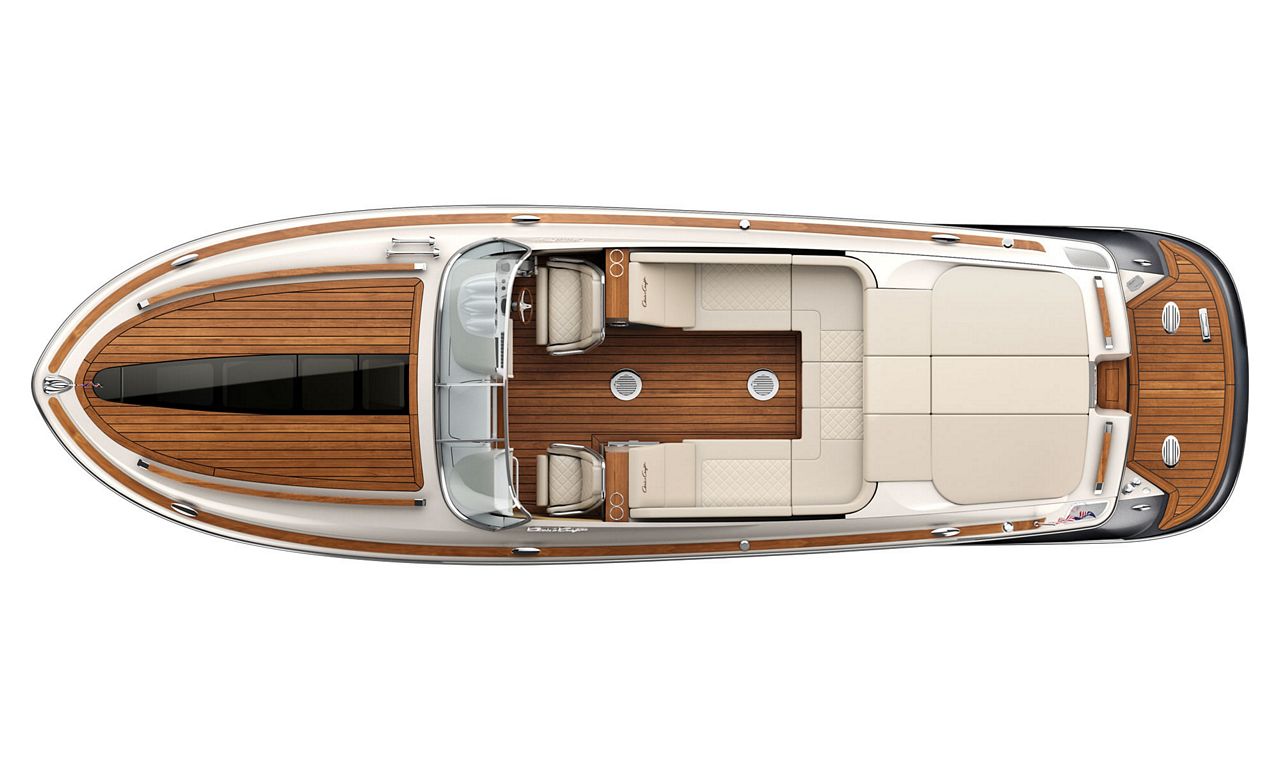

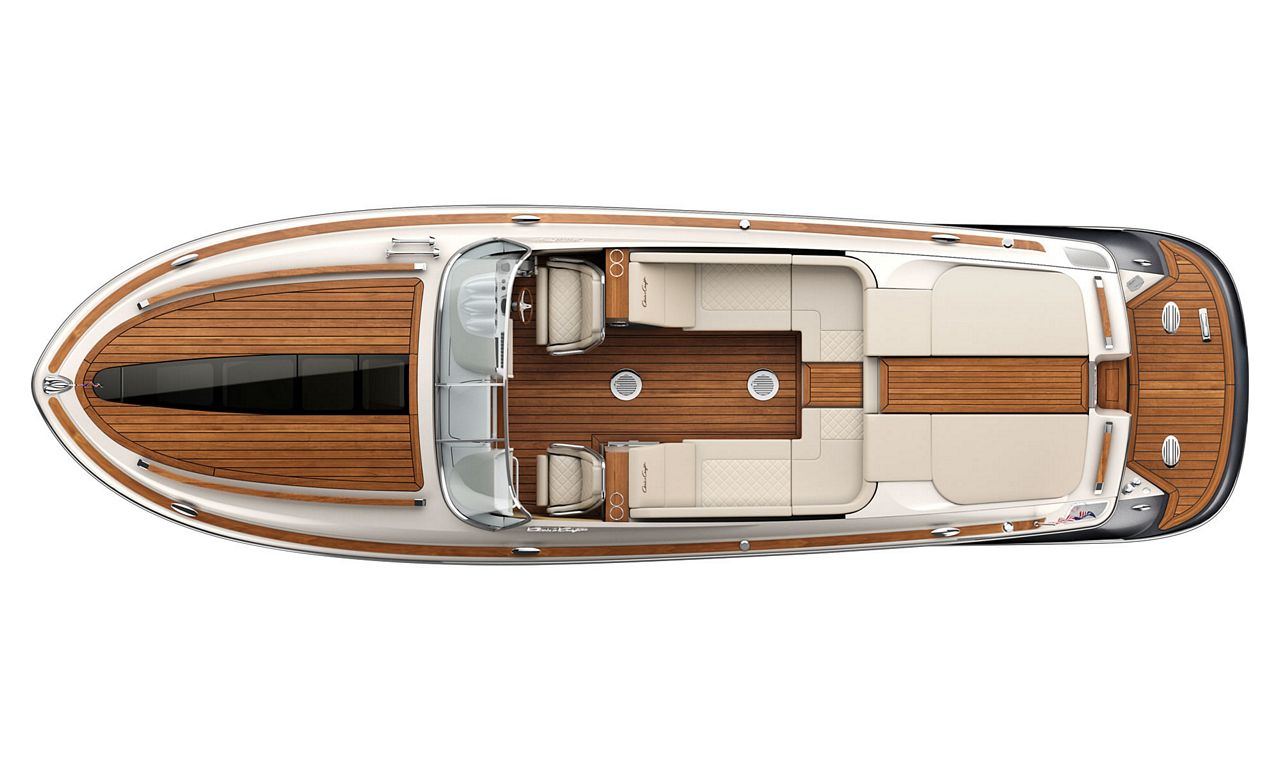

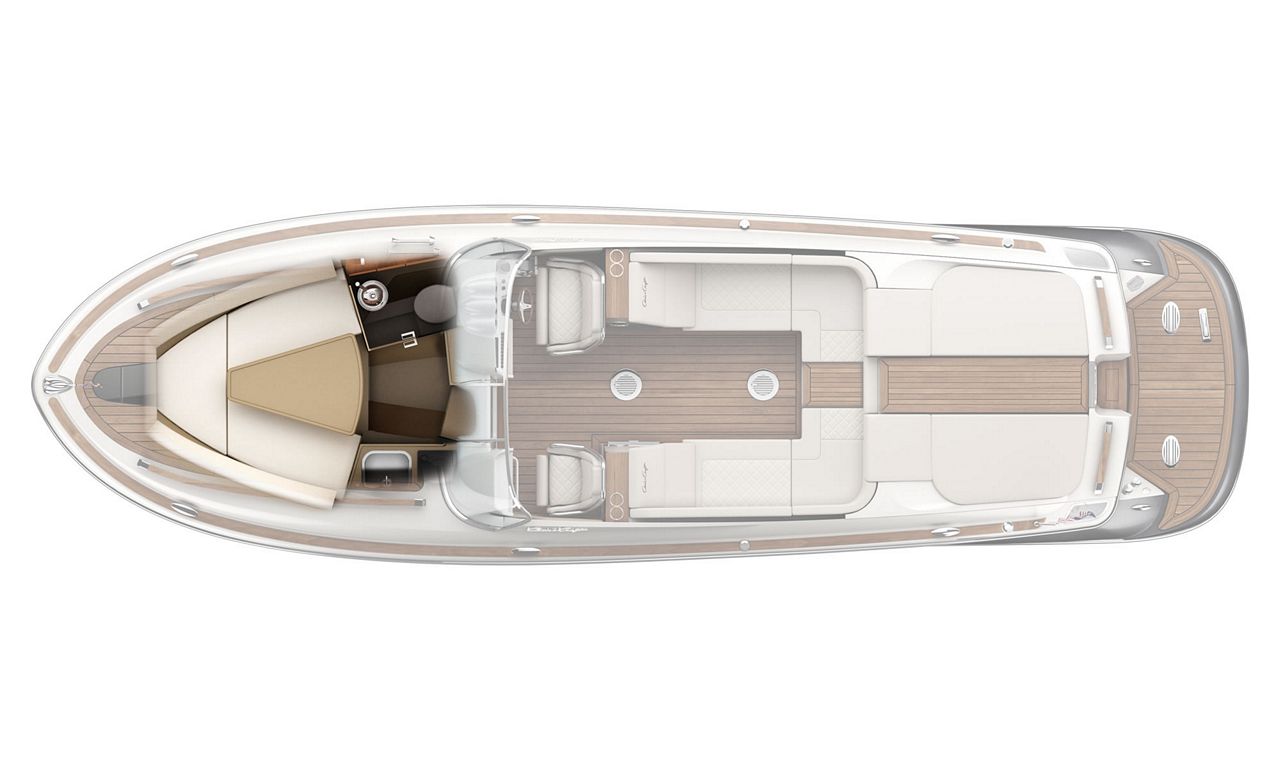

VISTA DE PLANO / CORSAIR 32
