CARINA 21

Nothing Else Looks Like It. Or Acts Like It.

That’s the point. More elegant. So remarkably thoughtful, it even comes with its own fitted cooler to serve up a chilled beverage whenever you desire. The Carina 21 is the bowrider for those who ride a different wave – and leave the standard crowd in their wake.

RESUMEN DE ESPECIFICACIONES

Length

21'2"

6.45 m

Beam

7'11"

2.41 m

Dry Weight

3,800 lbs

1,723 kg

Capacity

7 persons

Specifications
+

Length overall (w/ swim platform)

21'2"

6.45 m

Length overall (w/o swim platform)

19'7"

5.98 m

Waterline length

17'2"

5.23 m

Beam maximum

7'11"

2.41 m

Beam transom

6'10"

2.08 m

Beam waterline

7'6"

2.29 m

Center of gravity (fwd of transom keel)

5'10"

1.78 m

Dry weight

3,800 lbs

1,723 kg

Fuel capacity

31 gal

117.35 ltr

Deadrise

18 deg

Transom angle

15 deg

Draft, prop raised

17"

43 cm

Draft, prop lowered

34"

86.4 cm

Freeboard forward

31.5"

80 cm

Freeboard at half length

27"

68.5 cm

Freeboard aft

17.5"

44.5 cm

Height overall

4'11"

1.47 m

Bridge clearance

46.5"

1.18 m

Maximum persons

7

Standard Features
+

Teak Maintenance Kit

Teak Caulk Color Choice – black or blonde

3 Yr - Chris Craft protection plan

5 Yr - transferable hull/structural warranty

Bow Scuff Plate - SS

Certifications and Standards - NMMA, ABYC, USCG

Deck Fill Plates - SS

Deck - diamond pattern non-skid, fiberglass

Flag/Pennant - embroidered Chris Craft and US Flag kit w/SS magnetic pole and base

Color Selections - base gel, Ivory Cream

Color Selections - boot stripe - multiple color selections

Gunnel Trim Rubrail - molded PVC w/SS insert

Hardware - bow and stern eyes, SS

Hardware - bow light cover, SS

Hardware - chrome plated SS fasteners

Hardware - cleats, SS mooring

Hardware - high end fit n finish w/316L SS and Chris Craft logo

Hardware - thru-hull fittings, SS

Hatches - vacuum infused w/ SS shocks

Hull - Chris Craft trademark Tumblehome design

Hull - deep V bottom w/flared bow

Hull - deck joint - mechanically, chemically bonded

Lighting - navigation lights, SS and international compliance

Logo - SS, Chris Craft branded

Swim Ladder - 3 step, SS hidden

Swim Platform – integral

Swim Platform Grabhandle - SS

Beverage Holders - Stainless Steel

Bolsters - padded gunwhale mounted

Drains – SS

Fuel System - EPA compliant

Grabrails - SS

Helm - compass, dash mounted

Helm - dash, gauge and switch panels w/silver perforated panels

Helm - dash light dimmer

Helm - ignition safety switch(es)

Helm - model designator, SS

Helm - steering wheel, mahogany

Helm - steering, tilt w/power assist

Helm - stereo remote, MP3/USB inputs w/Fusion Bluetooth enabled

Ladder - Stainless Steel boarding

Lighting - LED courtesy

Outlets/Input - 12v accessory outlet(s)

Outlets/Input - USB auxiliary input

Speakers - JL Audio Sound System

Stereo System - Fusion, AM/FM/Bluetooth/USB

Stereo System - Premium upgrade with amp and subwoofer

Stowage - aft deck compartments

Upholstery Construction - high density foam with antimicrobials and open cell mesh for drying

Vinyl - heavy duty, stain/UV resistant

Vinyl - multiple design/color selections

Windscreen - curved tempered glass

Windscreen - Stainless Steel Frame

Battery Charger

Battery Switch w/breakers

Battery Tray(s)

Bilge Pump - w/autofloat System

Electric Wiring - color coded and numbered w/Duetch connectors

Electrical Bonding System

Engine Packages
+
Mercury

Mercury V8 6.2L (300 HP) B3 DTS

Mercury V8 6.2L (350 HP) B3 DTS

Volvo

Volvo V8-CE 5.3L (300 HP) DP FWC EVC

Volvo V8-CE 5.3L (350 HP) DP FWC EVC

Engine Options

Mercury - Seacore (6.2L Requires DTS Option)

Selectable Exhaust

High Altitude

Volvo - Ocean X

Standard Equipment
+

Mercury V8 6.2L (300 HP) B3 DTS

Teak - bow accents w/SS inserts and Chris Craft SS Logo inlay

Teak - cockpit steps

Teak - helm footpad / footrests

Air Intakes - SS

Anchor - storage under forward seat

Hull - stringer system and liner, 1 piece fiberglass foam filled for floatation and noise reduction

Ski Pylon - removable

Swim Ladder - 3 step, SS hidden

Swim Platform - integral w/ 3-step ladder

Ventilation Grates/Stainless Steel

Canvas - bimini top w/SS bows and color fast acrylic

Helm - depth finder - LCD

Helm - digital gauge package, Chris Craft branded

Helm - engine controls, Electronic Control - EVC/DTS/DEC

Helm - Engine control, chrome, side mounted

Helm - horn, electric trumpet(s)

Seating - aft bench, molded

Seating - bucket seats w/integrated SS handrails and flip-up bolsters

Seating - forward, circular w/forward facing port and starboard lounges

Seating - portside passenger, chair w/flip-up bolster, swivel and SS integrated grab handles

Seating - sunpad, large aft w/ transom walk-over

Stowage - aft cockpit, underseat

Stowage - bimini, dedicated under engine hatch

Stowage - bow, port and starboard recessed

Stowage - coaming w/beverage holders

Stowage - infloor ski/rod

Stowage - infloor w/built-in cooler

Transom Entrance - Access from the swim platform

Windscreen - tempered glass, center walk-thru

Bilge System - electric w/blowers

Engine Compartment Stowage

Engine Hatch - w/SS hinges and SS gas shocks

Engine Hatch Insulation - acoustical barrier, Silver Mylar

Fire Extinguish System - automatic w/manual override

Fuel System - aluminum tanks w/anti-siphon valves and electric sending units

Options and Accessories
+

Bow Docking Lights-LED

Carpet - Woven Seagrass

Cockpit & Bow Cover (Color Same as Canvas Top)

Mooring Cover

Lifting Ring Package

Ocean Shipping Cradle

Sirius Satellite Radio- US & CAN Only (no subscription)

CE Certification

Transom Shower

Trim Tabs

Water Ready Option - Optima AGM Blue Top Battery

Underwater Lights (2)

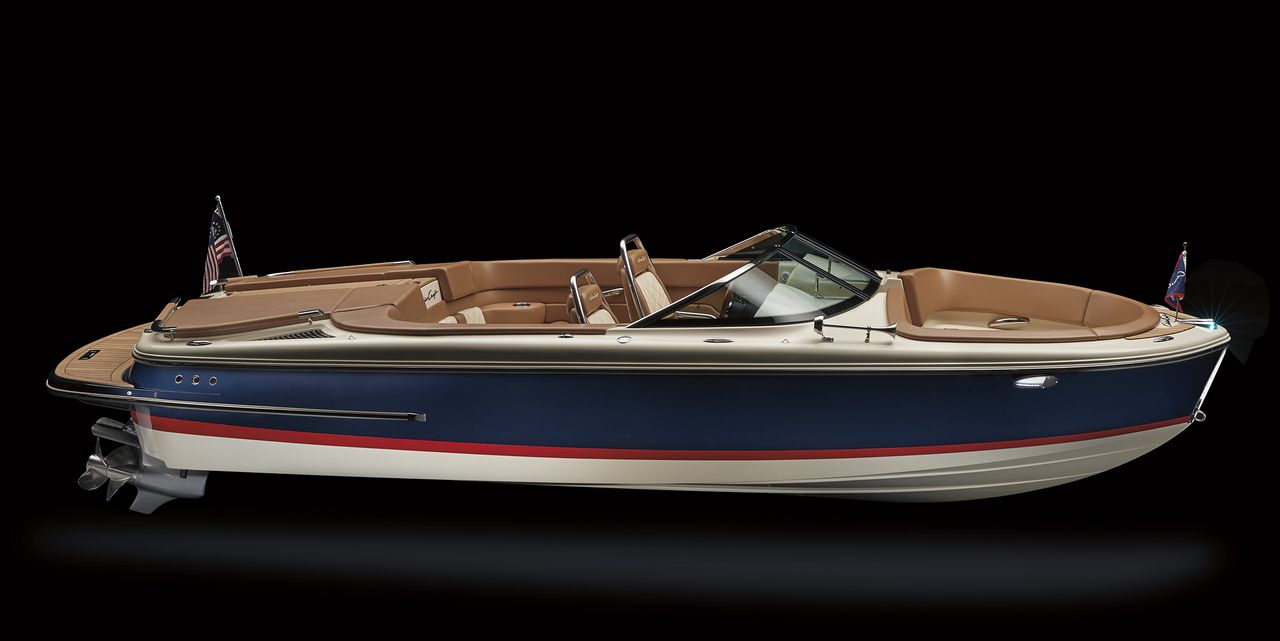

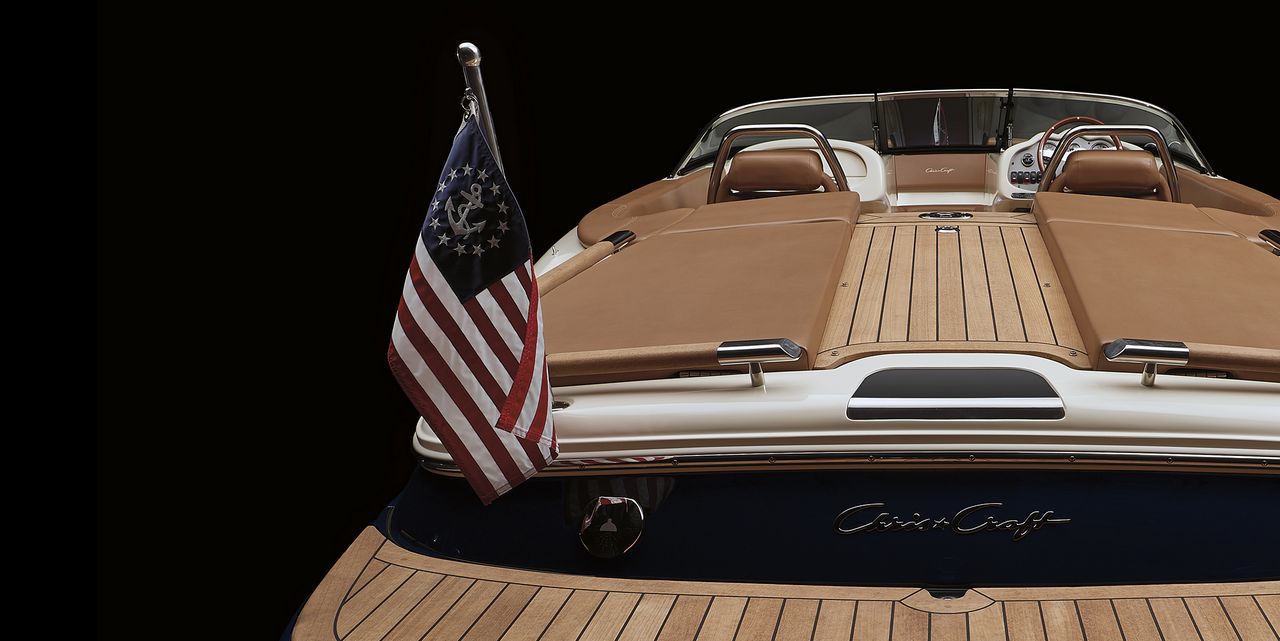

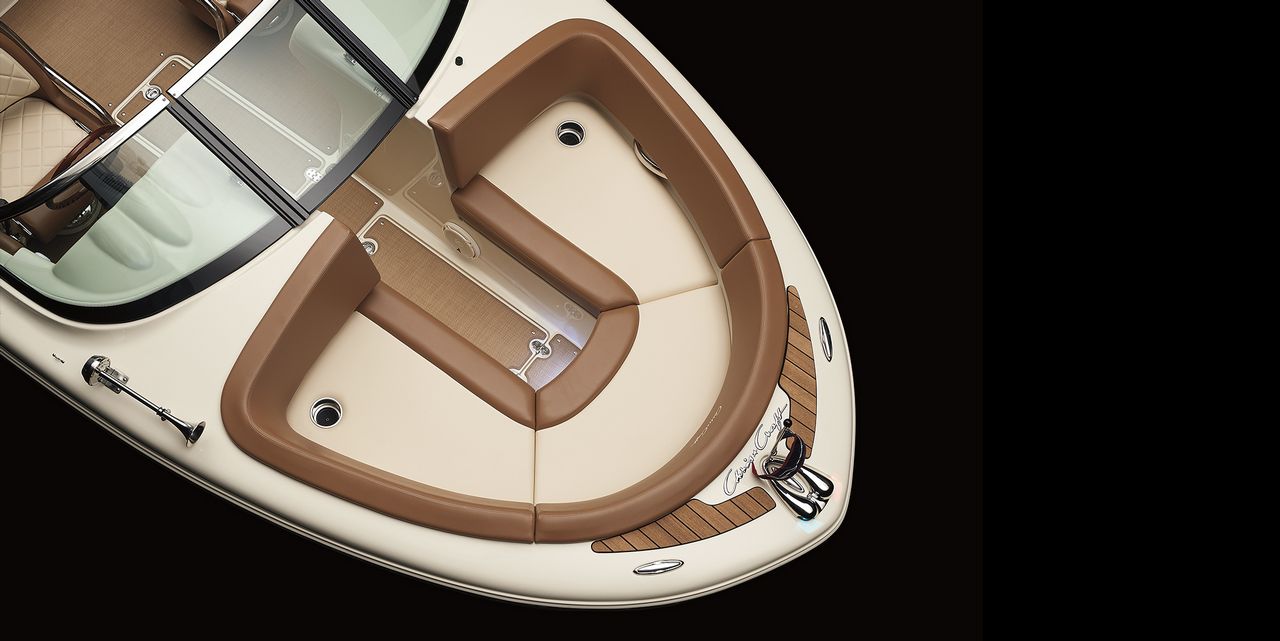

GALERIA / CARINA 21

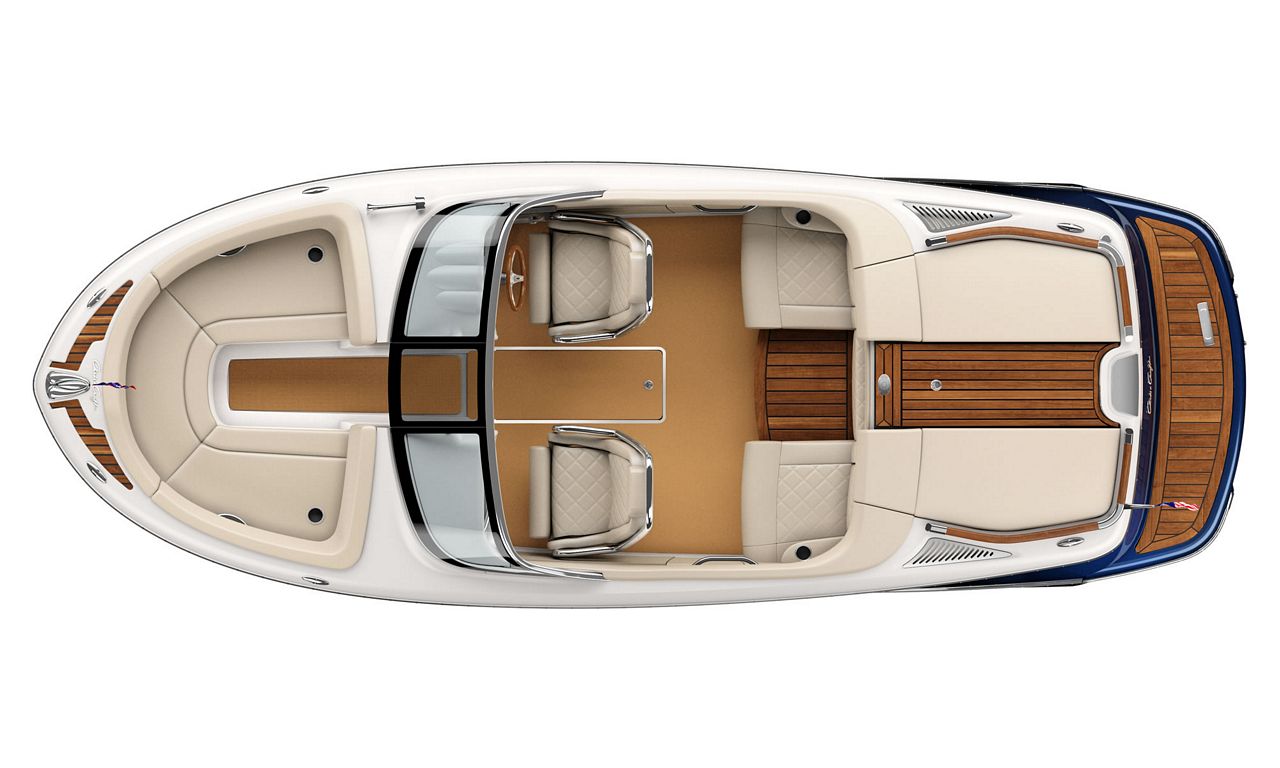

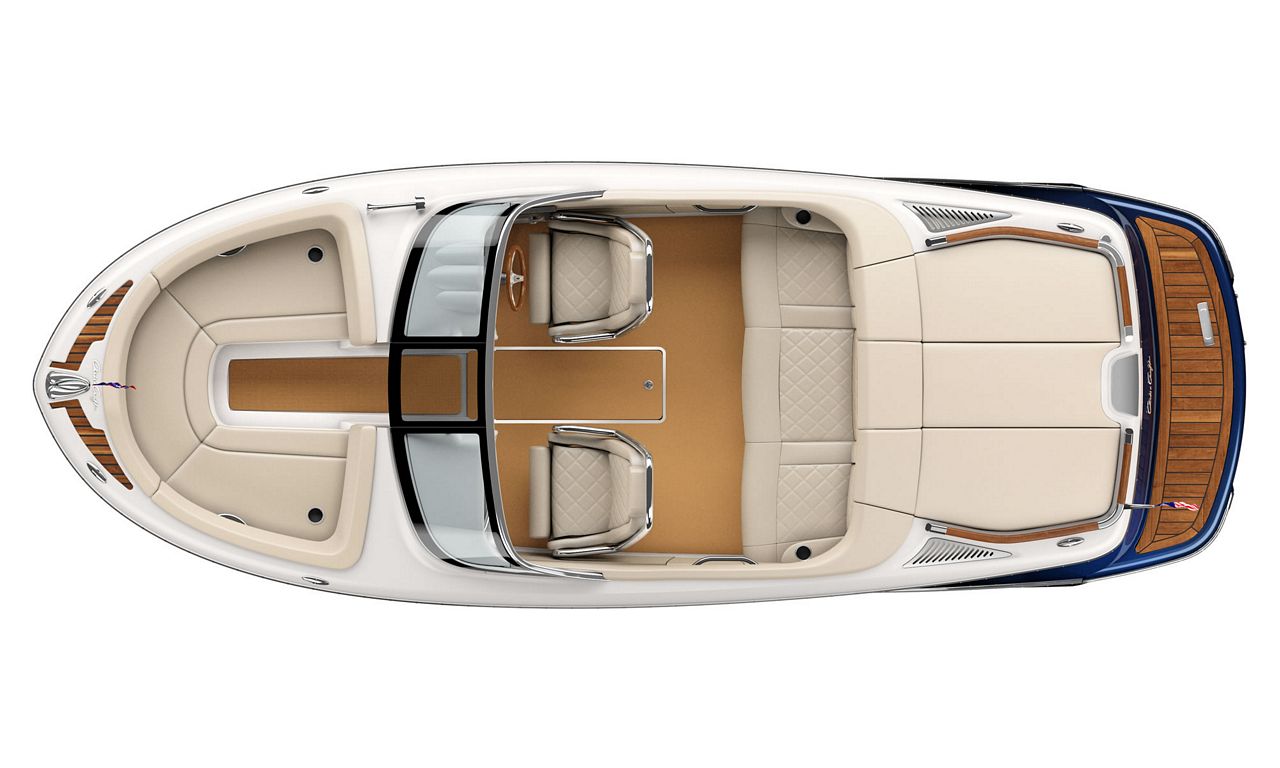

VISTA DE PLANO / CARINA 21
